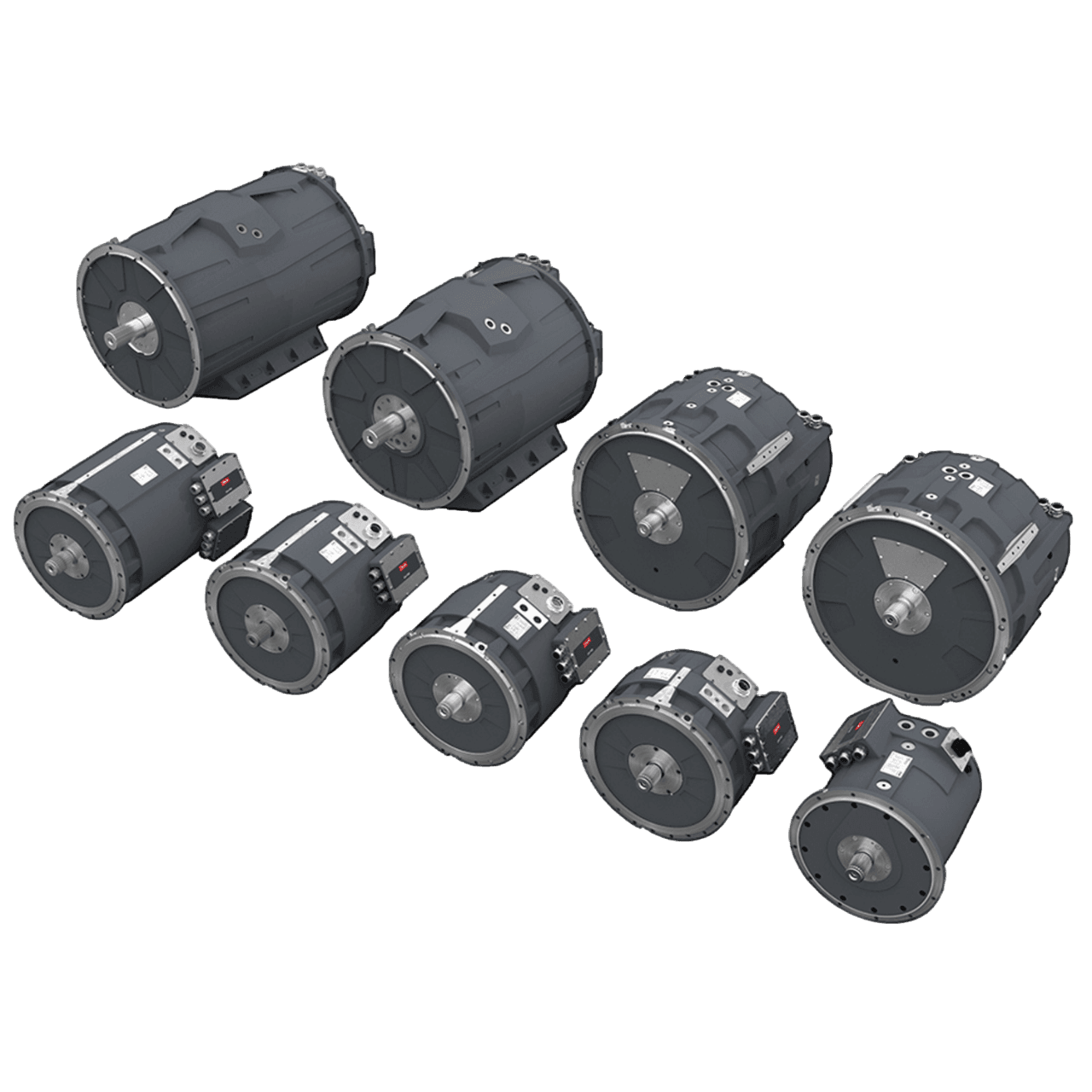

Danfoss Editron High voltage multipurpose motors
Danfoss Editron electric machines are based on synchronous reluctance assisted permanent magnet (SRPM) or permanent magnet synchronous machine (PMSM) technology. They are liquid-cooled and designed to work in harsh operating environments typical in drivetrain applications. For instance, traction motor in heavy machinery or propulsion motor in marine applications. They can work both as a generator or as a motor.
___________________________________________________________________________________________________________________________________________________________________________________________
EM-PMI 540-T1500 ... T4000
- Power range from 119 kW to 896 kW, speed range from 600 rpm up to 4.000 rpm.
- Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP65 enclosure class
___________________________________________________________________________________________________________________________________________________________________________________________

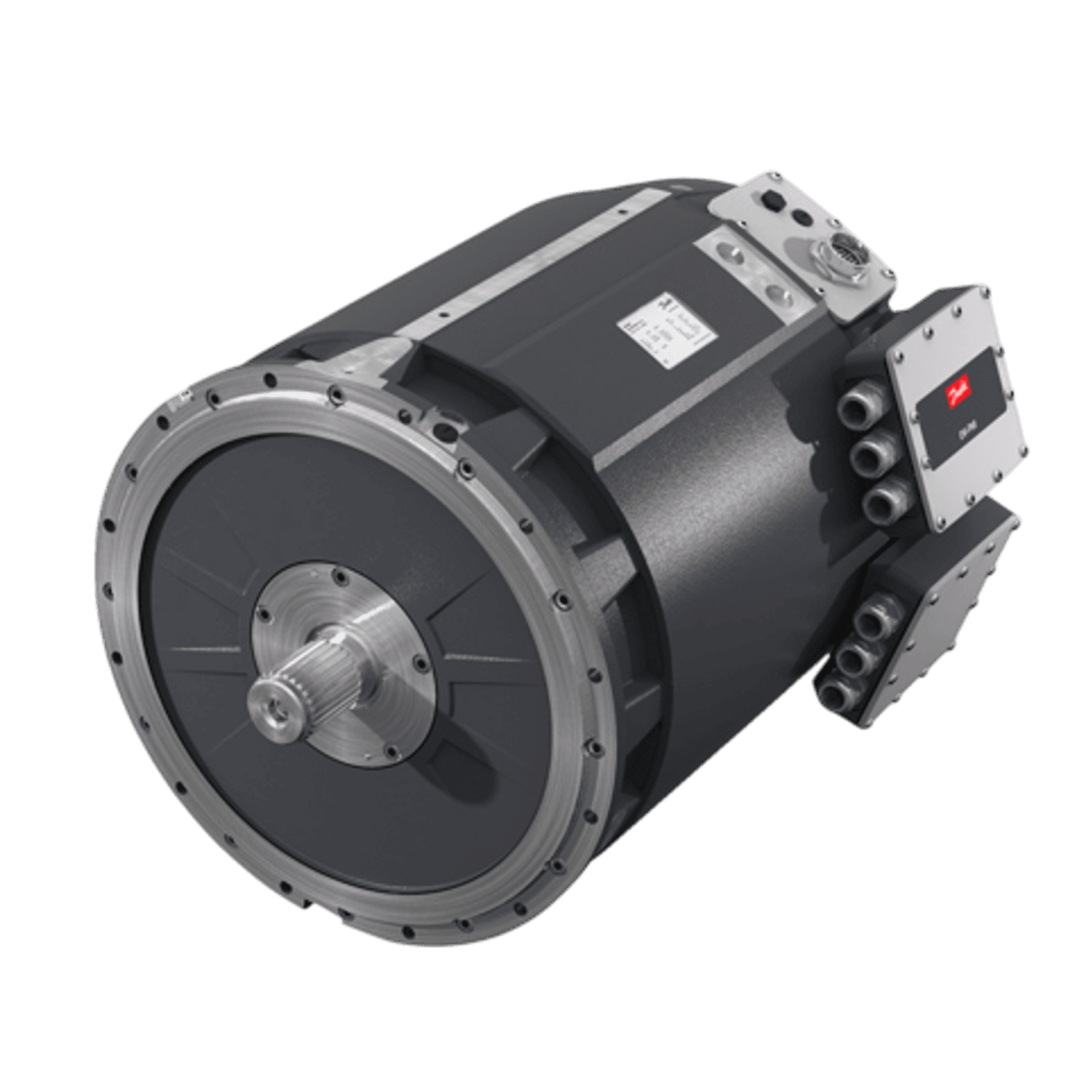

EM-PMI 375-T800 ... T1100
- Power range from 85 kW to 296 kW, speed range from 900 rpm up to 4.000 rpm.
- Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- Up to IP67 enclosure class
___________________________________________________________________________________________________________________________________________________________________________________________
EM-PMI 300-T310
- Power range from 41 kW to 94 kW, speed range from 1.100 rpm up to 4.000 rpm.
- Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP65 enclosure class
___________________________________________________________________________________________________________________________________________________________________________________________
EM-PMI 240-T180
- Power range from 48 kW to 114 kW, nominal speed range from 2.200 rpm to 8.800 rpm and maximum speed up to 9.200 rpm.
- Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
- Extremely compact and robust structure: weight 85 kg
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP65 enclosure class (IP67 option)
- The most common connection interface for S45 series open circuit hydraulic pumps
- Grease lubricated bearings as a standard
- HV cable interface done with connector
___________________________________________________________________________________________________________________________________________________________________________________________

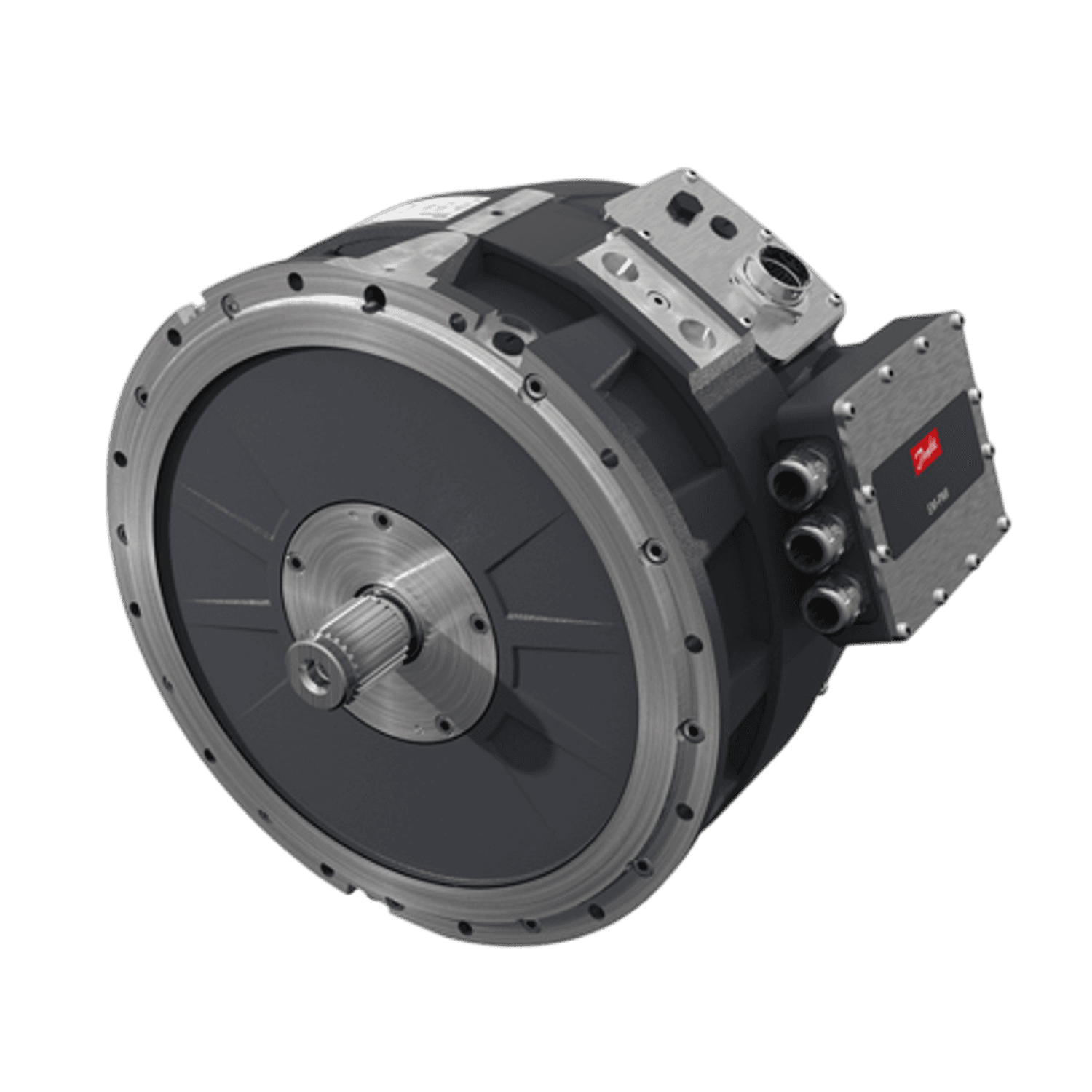

EM-PME 375 T150 ... T200
- Power range up to 40 kW with speed range from 1.500 to 2.600 rpm.
- The machine is designed to be shorter than normal motors for applications where axial length is crucial parameter. The machine is designed to be connected directly to the ICE flywheel housing or to a gearbox with part of the motor being inside the flywheel housing or the gearbox for as short as possible design.
